Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold
Japan mold steel DC53 Cold forging mold

Japan mold steel DC53 Cold forging mold

$9≥10Piece/Pieces

Payment Type:D/P,T/T,D/A
Incoterm:EXW
Min. Order:10 Piece/Pieces
Transportation:Land,Air,Express
Option:
Product Attributes

BrandFG-081

Place Of OriginChina

Packaging & Delivery
Selling Units : Piece/Pieces
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

Japanese mold steel DC53 Cold forging mold Convex and concave mold
Product Description

Dongguan Fengguan Precision Technology Co., Ltd. is located in Changan Town, Dongguan City, which is the main center of Zhuzhou cemented carbide in Dongguan. The main tungsten carbide materials, tungsten steel mold deep processing and all kinds of tungsten steel precision accessories. The cemented carbide series mainly produced and sold are: cemented Carbide Tungsten Steel plate, cemented carbide tungsten steel round rod, cemented carbide Tungsten steel strip , cemented carbide Tungsten steel round die, diamond tungsten steel, various kinds of cemented carbide tungsten steel non-standard blank, non-magnetic tungsten steel, hard alloy drawing die, tungsten steel pipe shrinking die, tungsten steel pipe drawing die, tungsten steel forming die, tungsten steel punching die, powder metallurgy die, tungsten steel sealing die, Tungsten steel insert sleeve, Tungsten steel extrusion die, Tungsten steel roll, Tungsten steel guide rail, Tungsten steel sealing ring, Tungsten steel punching and shearing die, Tungsten carbide wear-resistant parts, Tungsten wear-resistant steel, Tungsten corrosion-resistant steel, Tungsten steel conductive block, Tungsten steel punch, Tungsten steel bushing, Tungsten steel parts, cemented carbide ball, Tungsten steel milling cutter, diamond blade, Tungsten steel processing, etc. The main products are: Tungsten Steel Stretching MoldCNC Processing Tungsten Steel ProductsTungsten Steel Die MaterialTungsten Carbide Custom MachiningTungsten Steel Precision Machined Parts New Energy Materials Ceramic Aluminium Oxide Zirconia

Cold -handed mold steel with high strong toughness universal
DC53 material introduction

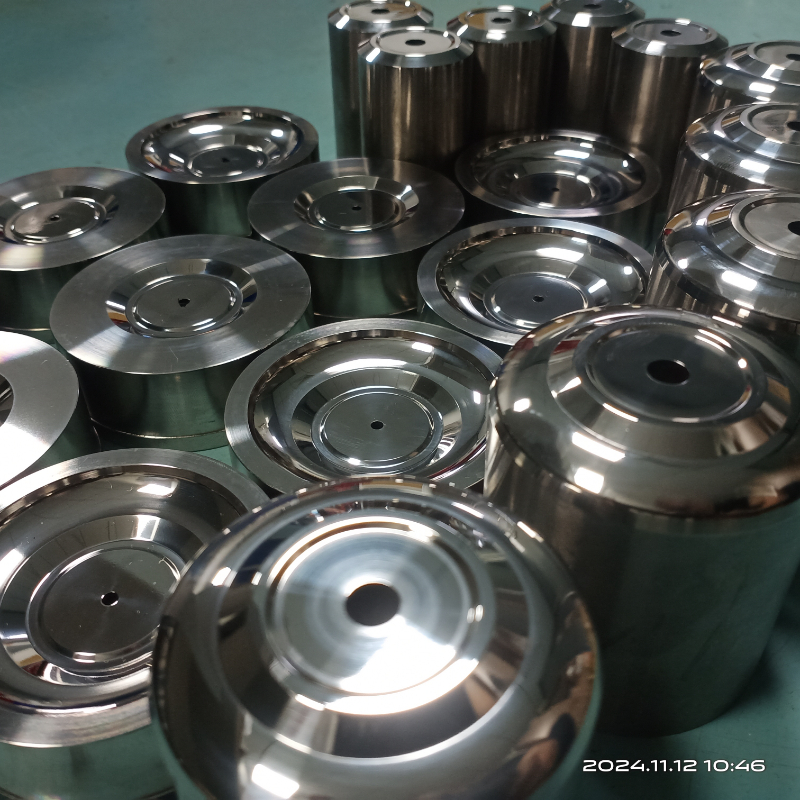

Convex and concave mold
DC53 is a high -strength and tough -common cold mold steel. It was originally a variety of Datong mold steel in Japan. Due to the high market visibility, it has become synonymous with the industry.
Chemical composition
The chemical composition of DC53 includes: carbon (C) 1.00%, silicon (Si) 0.91%, manganese (MN) 0.32%, chromium (CR) 8.00%, molybdenum (MO) 2.00%, 钒 (V) 0.28%69.
Performance characteristics

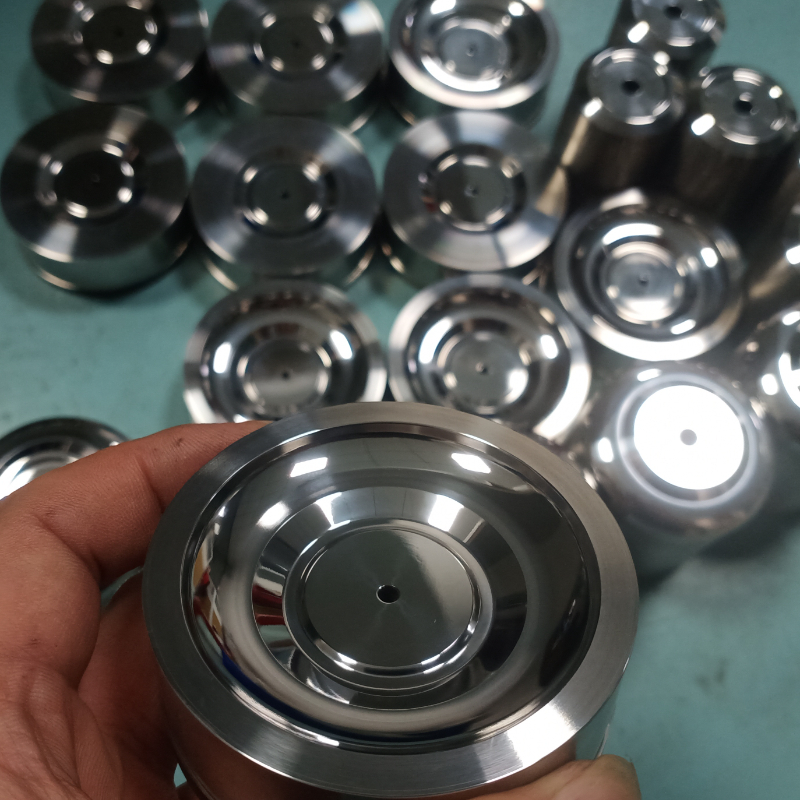

DC53 Cold forging mold
Hardness and strength: The hardness after DC53 is higher than SKD11, and the hardness can reach 62-63HRC after high temperature recovery. In terms of strength and abrasion resistance, SKD11 can be surpassed.
Toughness: The toughness of DC53 is twice that of SKD11, so the tools made with DC53 rarely crack and crack, greatly improved the service life.
Thermal treatment performance: DC53 quenching hardening ability is higher than SKD11, which can improve the problem of insufficient hardness during vacuum heat treatment. In addition, after recovering at a high temperature, the residual stress can be reduced, thereby suppressing the cracks and deformation of large molds and required precision molds online.
Machining performance: DC53's cutting and polishingability is better than SKD11. Using DC53 can increase the life of the tool mold and reduce the processing process.

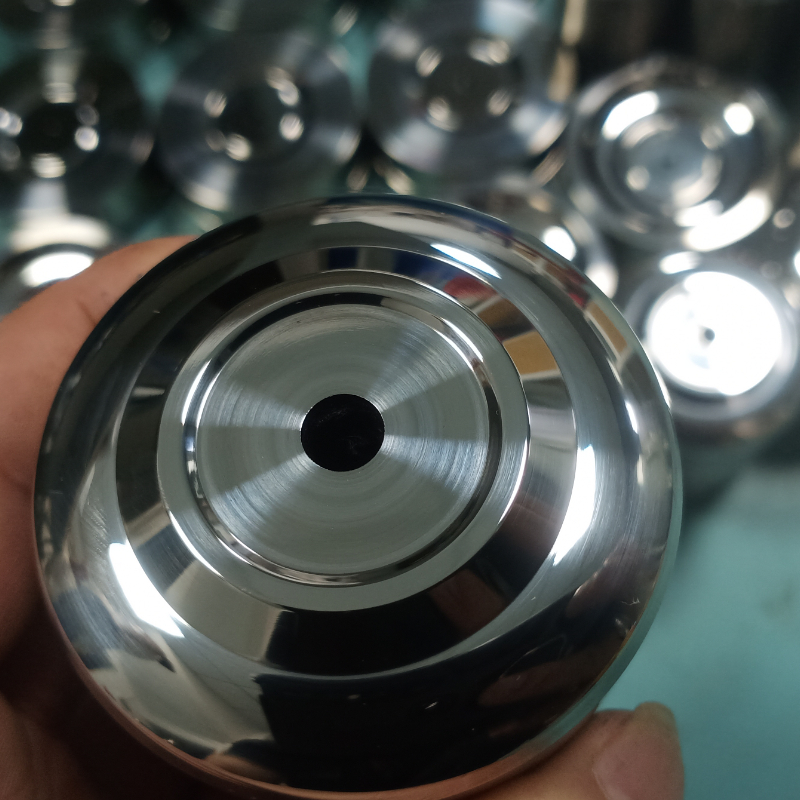

Japan mold Accurate driving
use
DC53 is suitable for making various precision molds, cold extruded molds, cold molds, etc., especially in the production of high pressure and high wear molds. It is an ideal choice.
Please provide the product CAD drawings you need, we will serve you wholeheartedly to solve your needs for mold accessories and other products!
